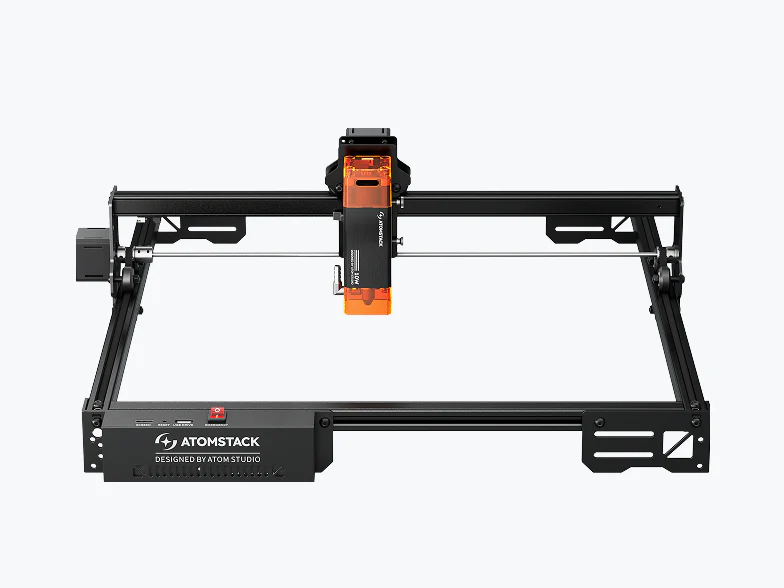

AtomStack A20 Pro V2 Laser Engraver

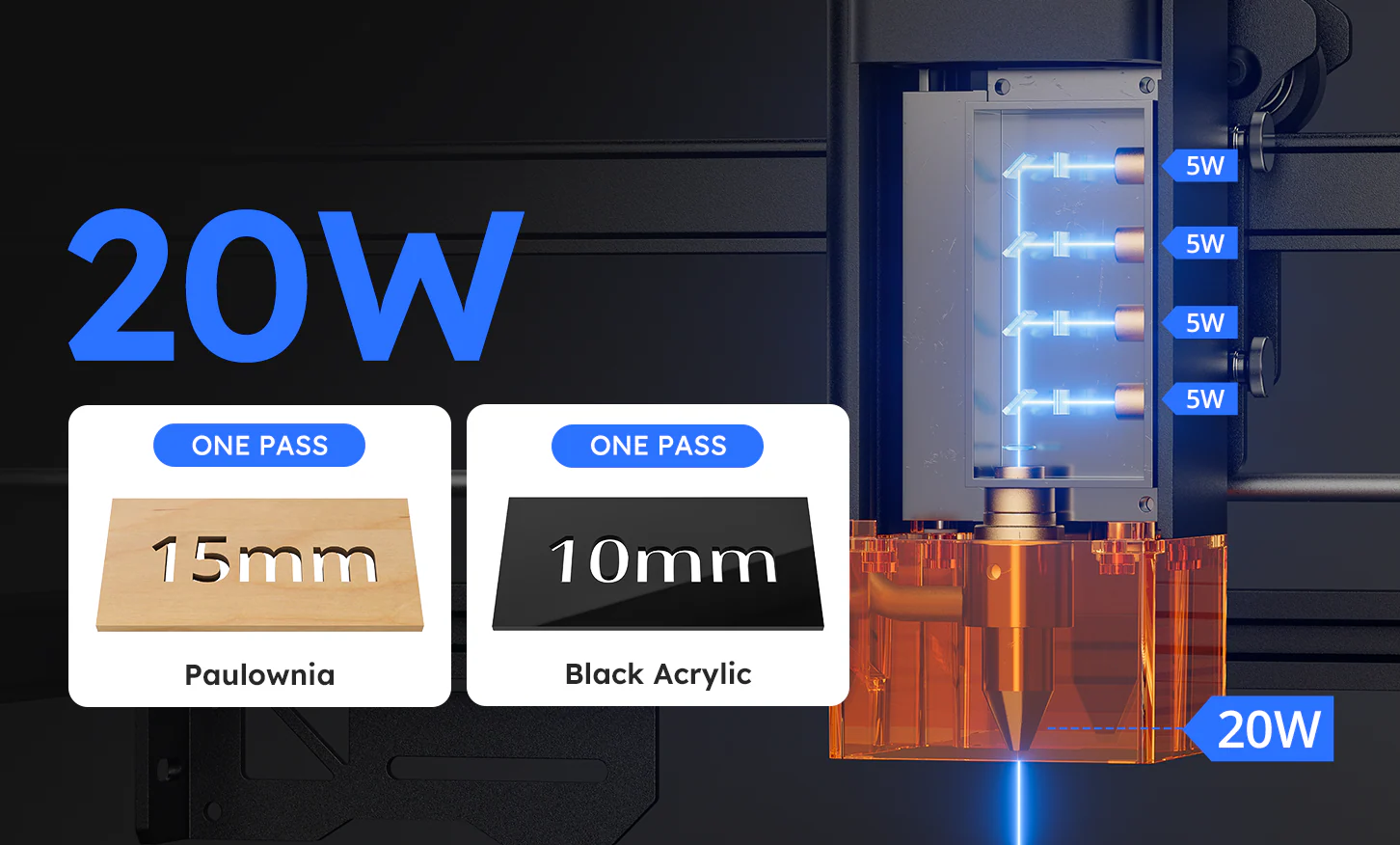

The AtomStack A20 Pro V2 features a 20W diode laser with a fine 0.08 × 0.10 mm laser spot, delivering clean engraving and reliable cutting across a wide range of materials. With a 400 × 365 mm working area and speeds up to 400 mm/s, it also includes essential safety features like flame detection, tip-over alarm, and resume engraving, making it a solid and dependable choice for everyday creation.
Specifications
| Product Model: | A20 Pro V2 |
| Device Size: | 7 x 10 x 7 inches |

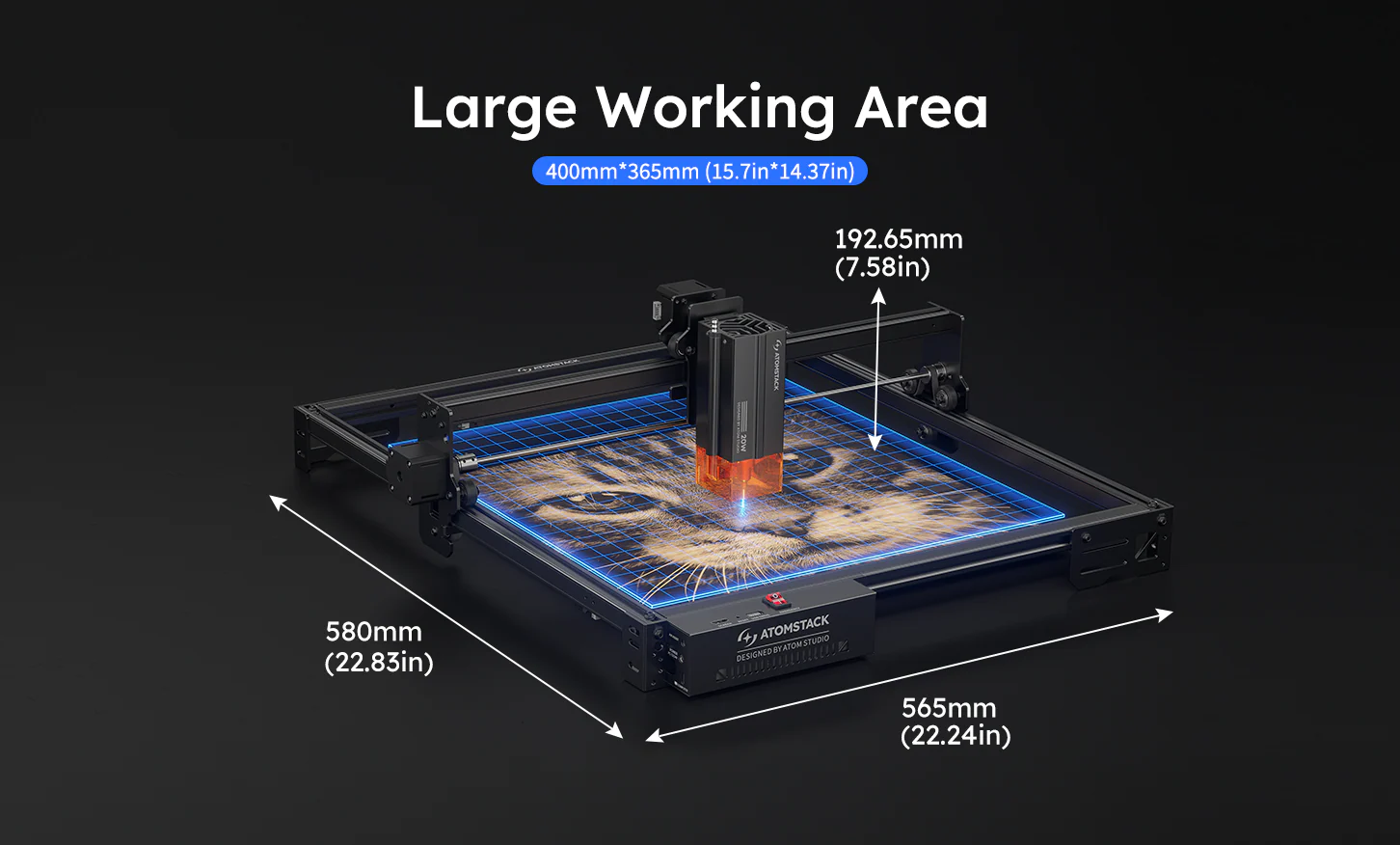

| Engraving Size: | 400 * 365mm(15.75*15.4inches) |
| Working Principle: | Engraving / Cutting |
| Engraving Materials: | Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate |
| Cutting Materials: | Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge |
| Input Power: | 120W |
| Output Power: | 20W |

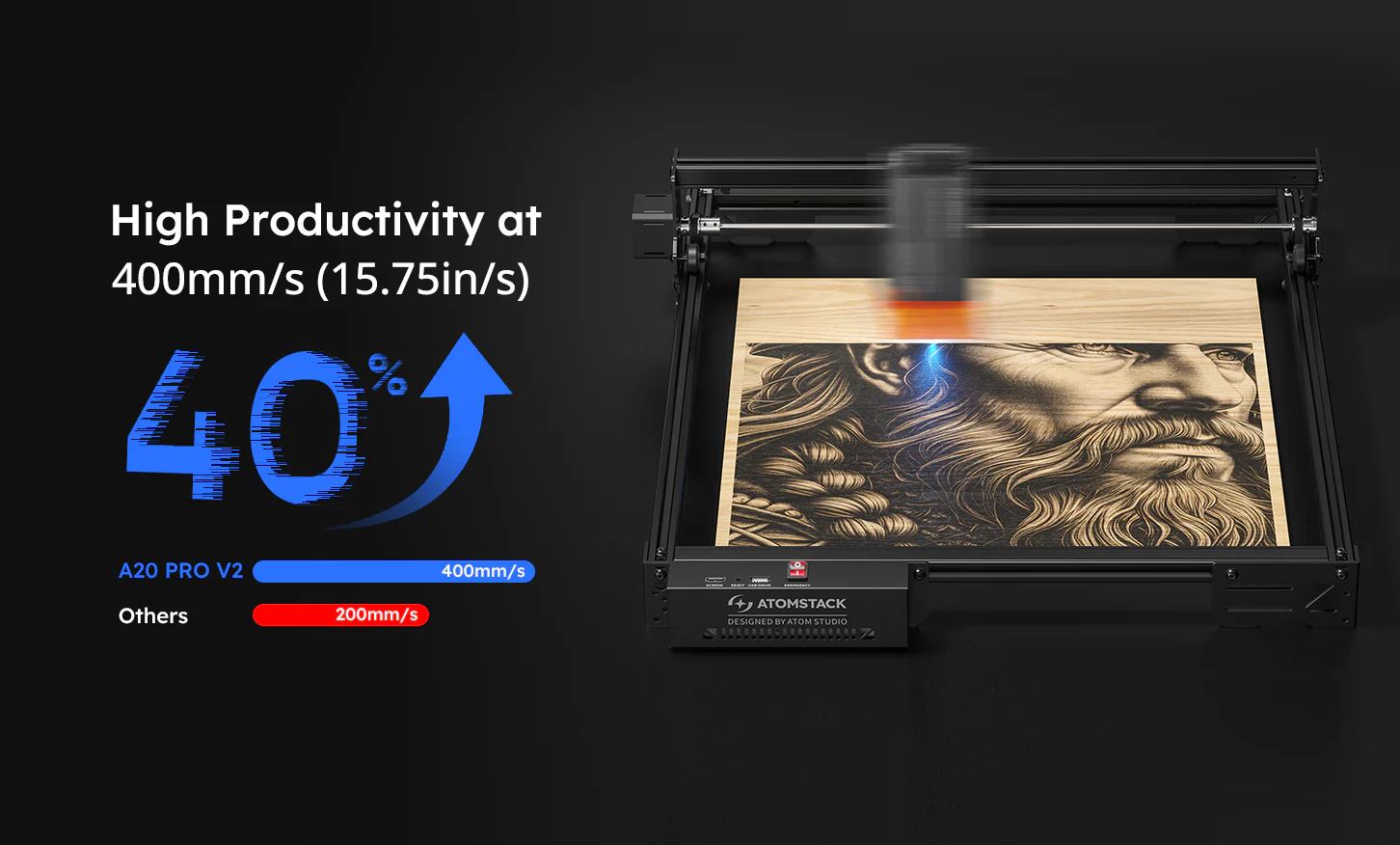

| Maximum Speed: | 400 mm/s |
| Laser Wavelength: | 455±5nm |
| Engraving Accuracy: | 0.02mm |

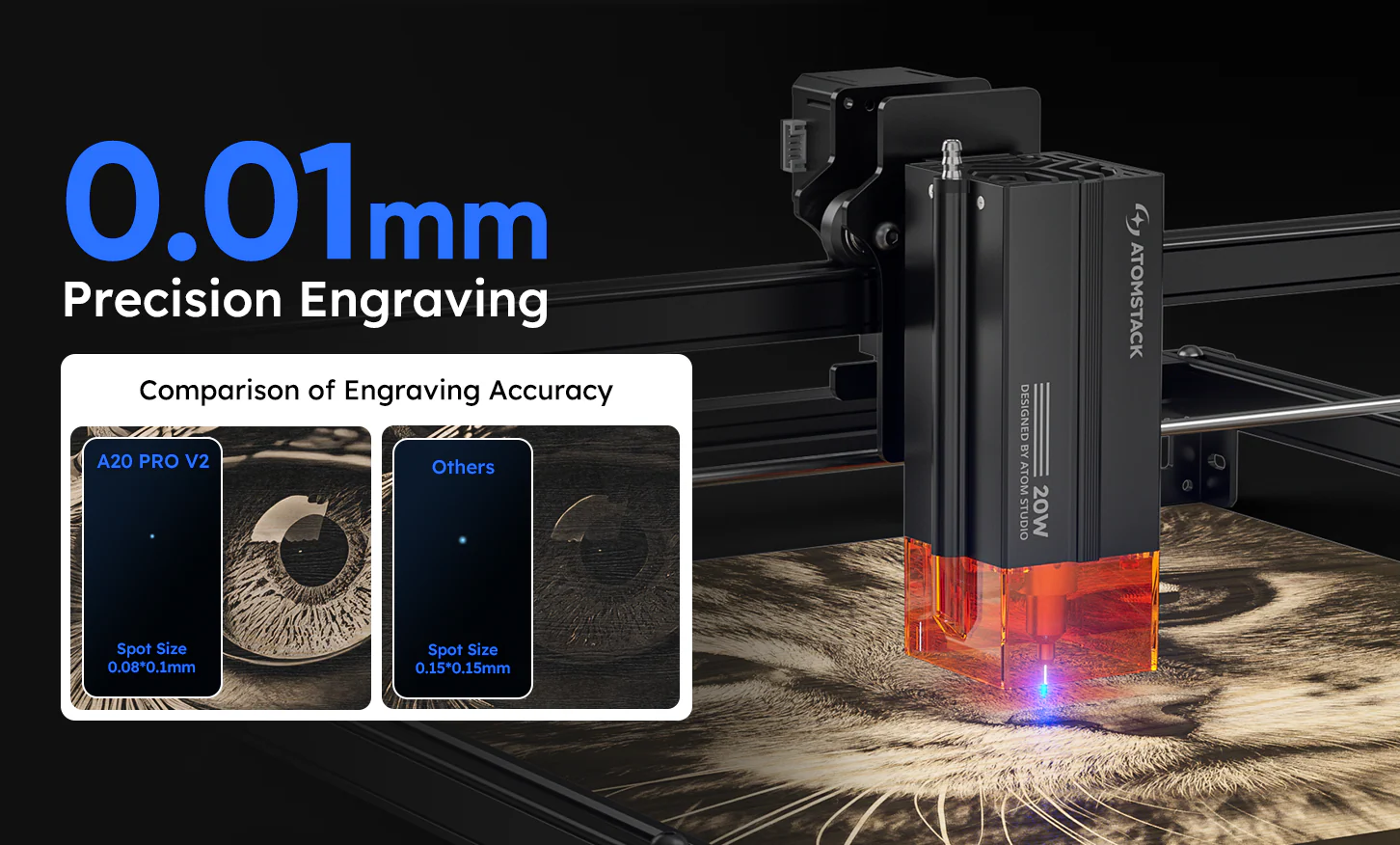

| Spot Size: | 0.08*0.10mm |

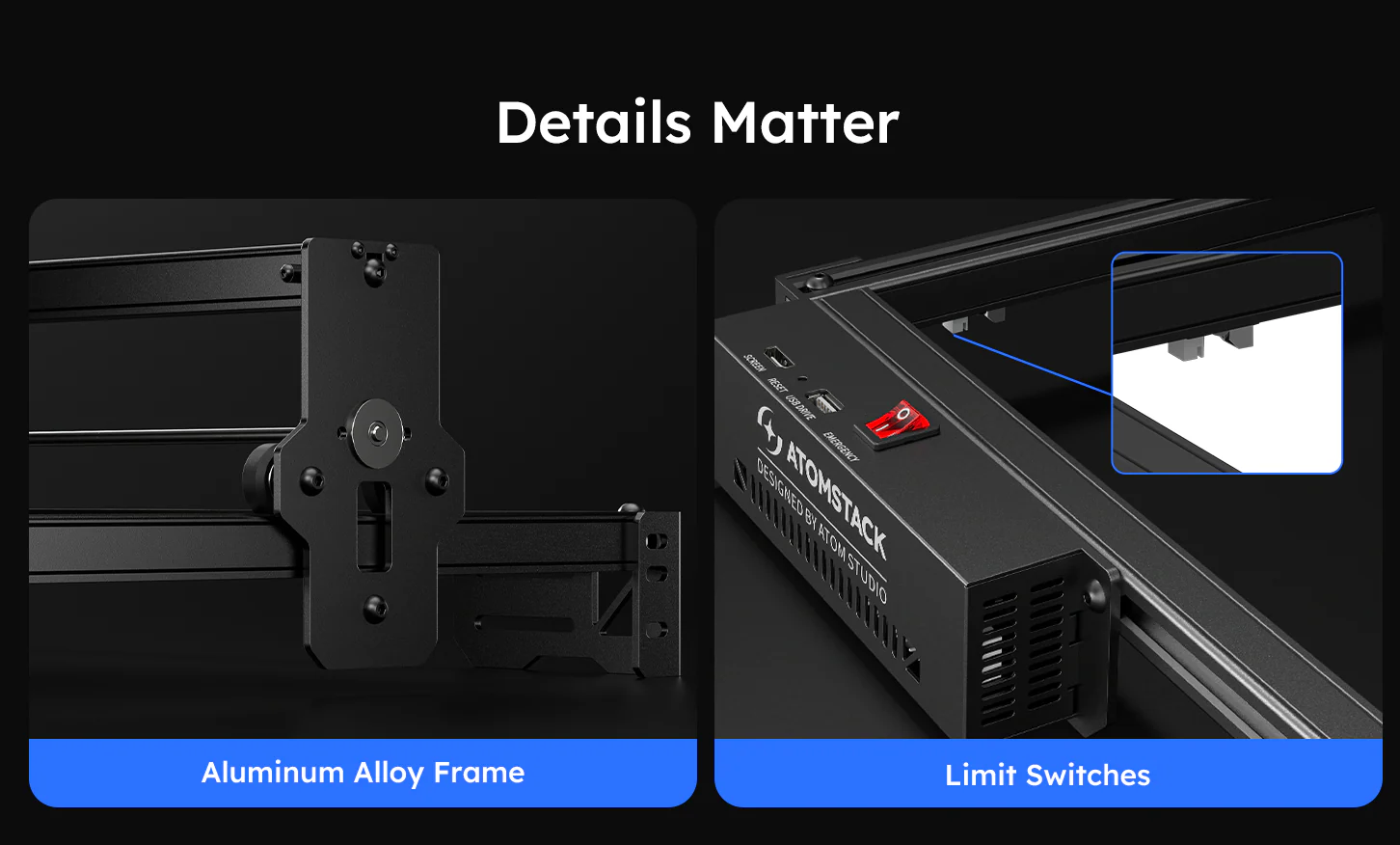

| Joint Structure: | Guide Rails |

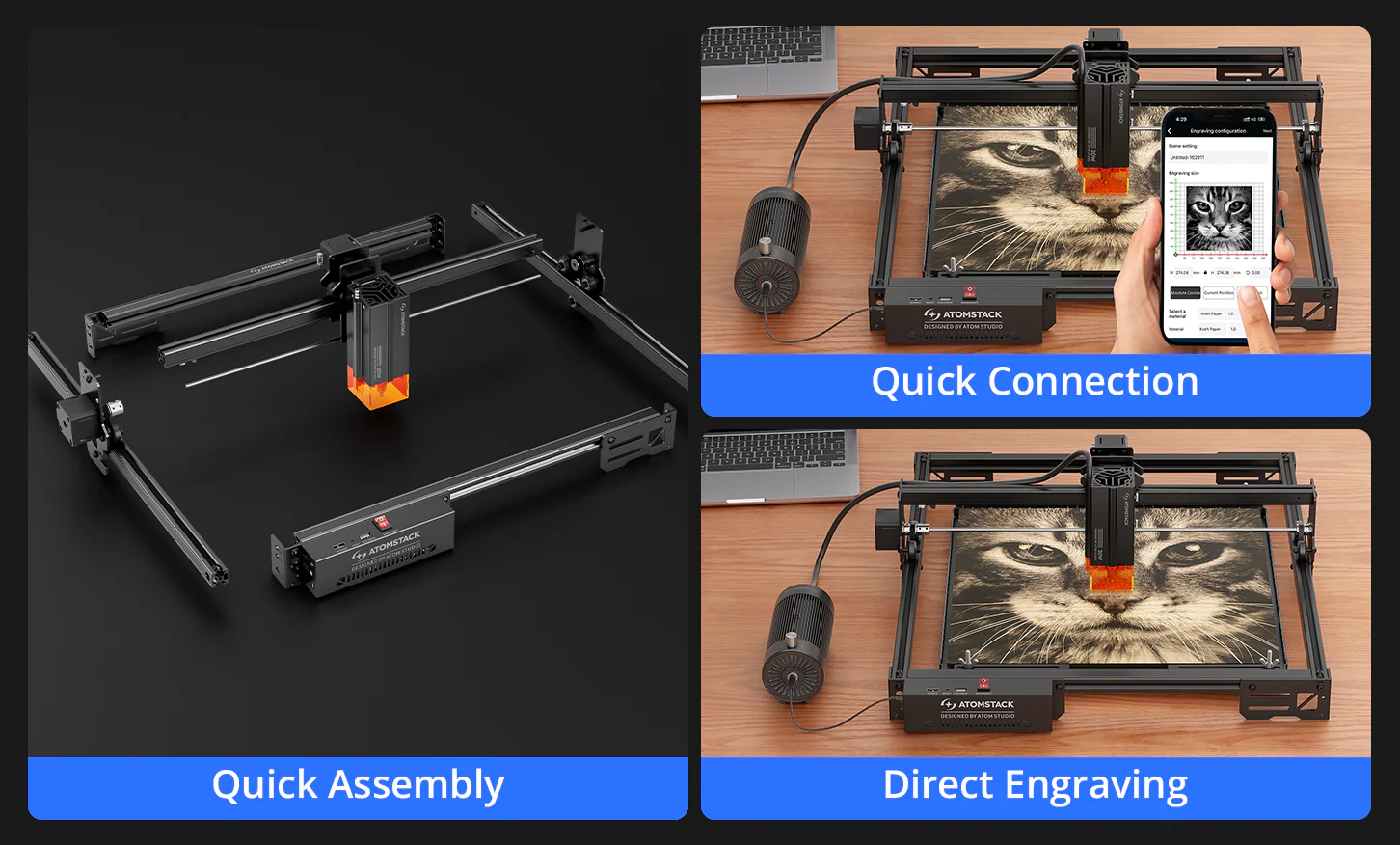

| Connection Method: | USB、Wi-Fi 2.4G |
| Supported Devices & Operating Systems: | Mobile: Android, iOS |
| Computer: Windows, mac OS | |

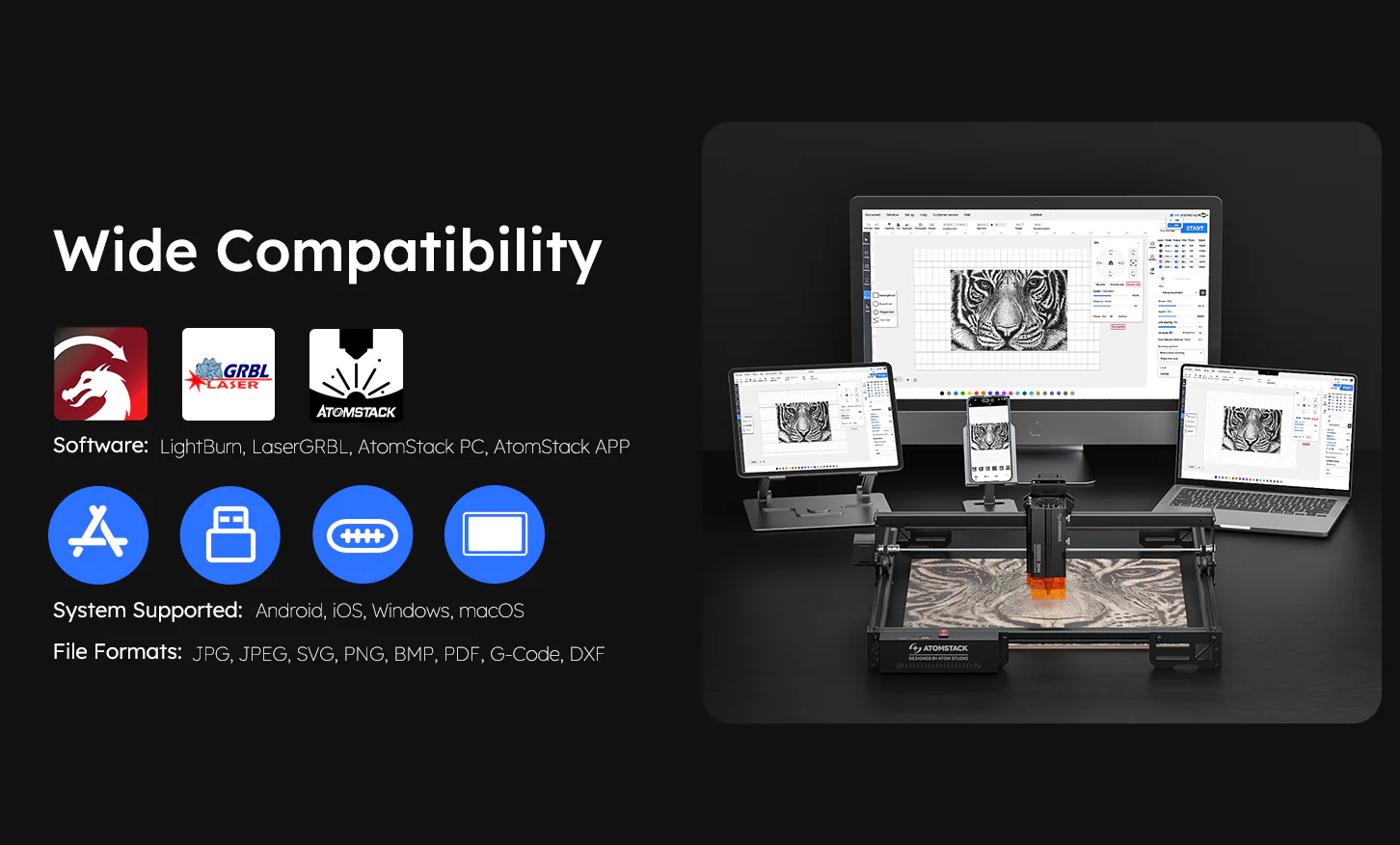

| Software: | LightBurn、LaserGRBL、Atomstack PC、Atomstack APP |
| Driver Update: | AtomStack APP or USB drive |
| Supported Formats: | JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF |
| Focus Adjustment Method: | Manual focus |

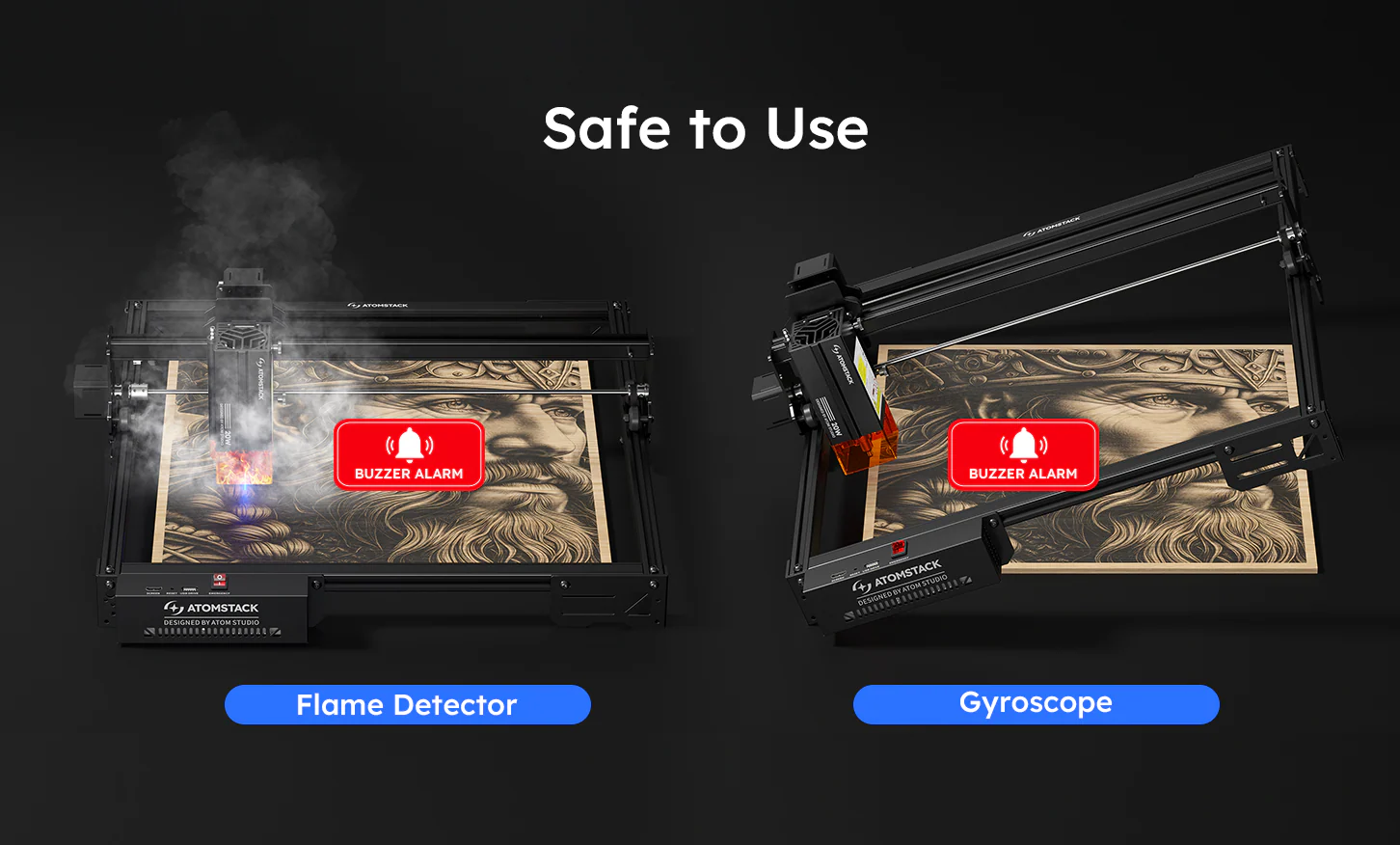

| Tip-over Alarm: | Tipping angle>15°, buzzer prompts |

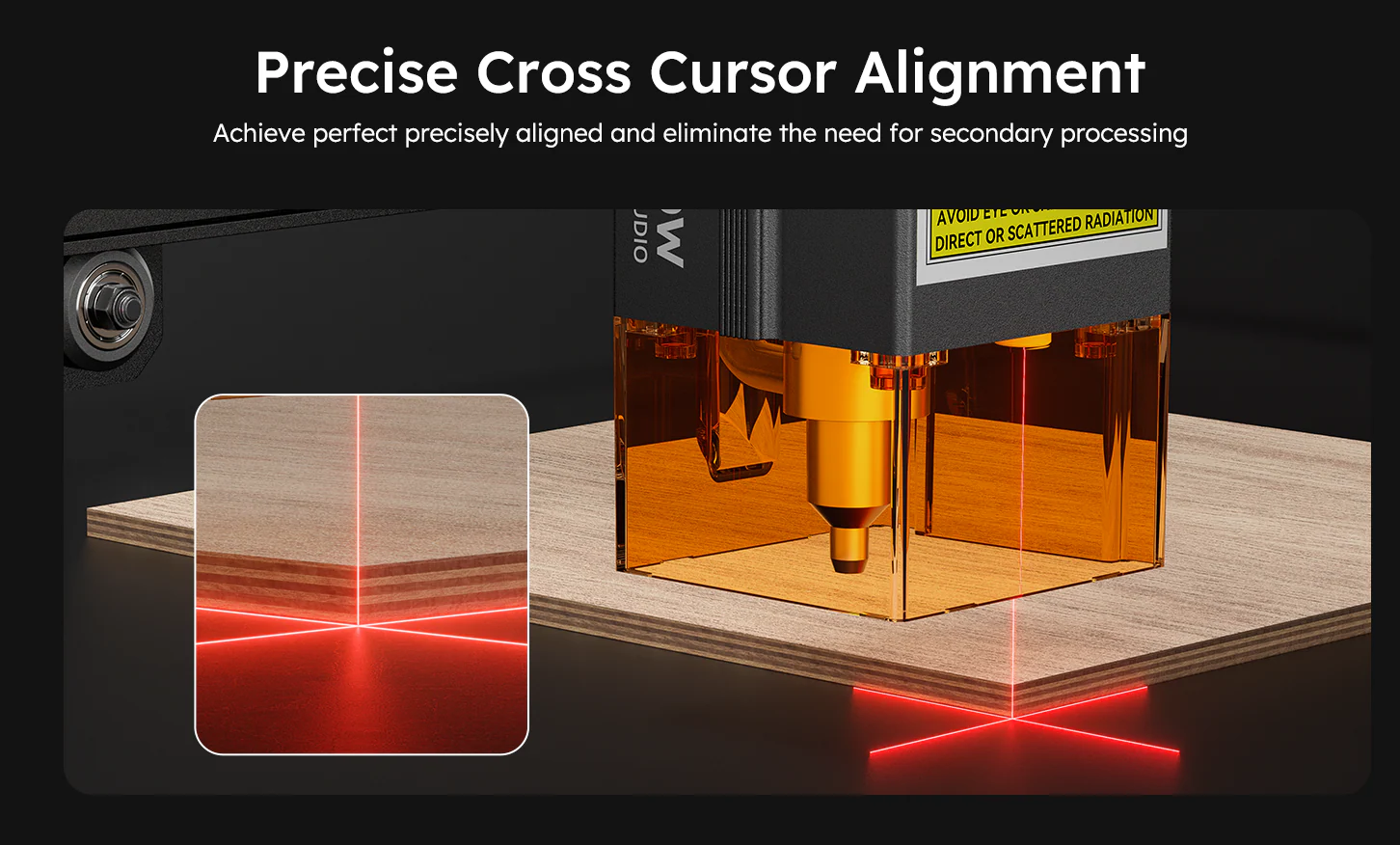

| Cross Positioning: | Yes |
| Flame detection: | Yes, it requires support from the Z2 Z-axis slider |

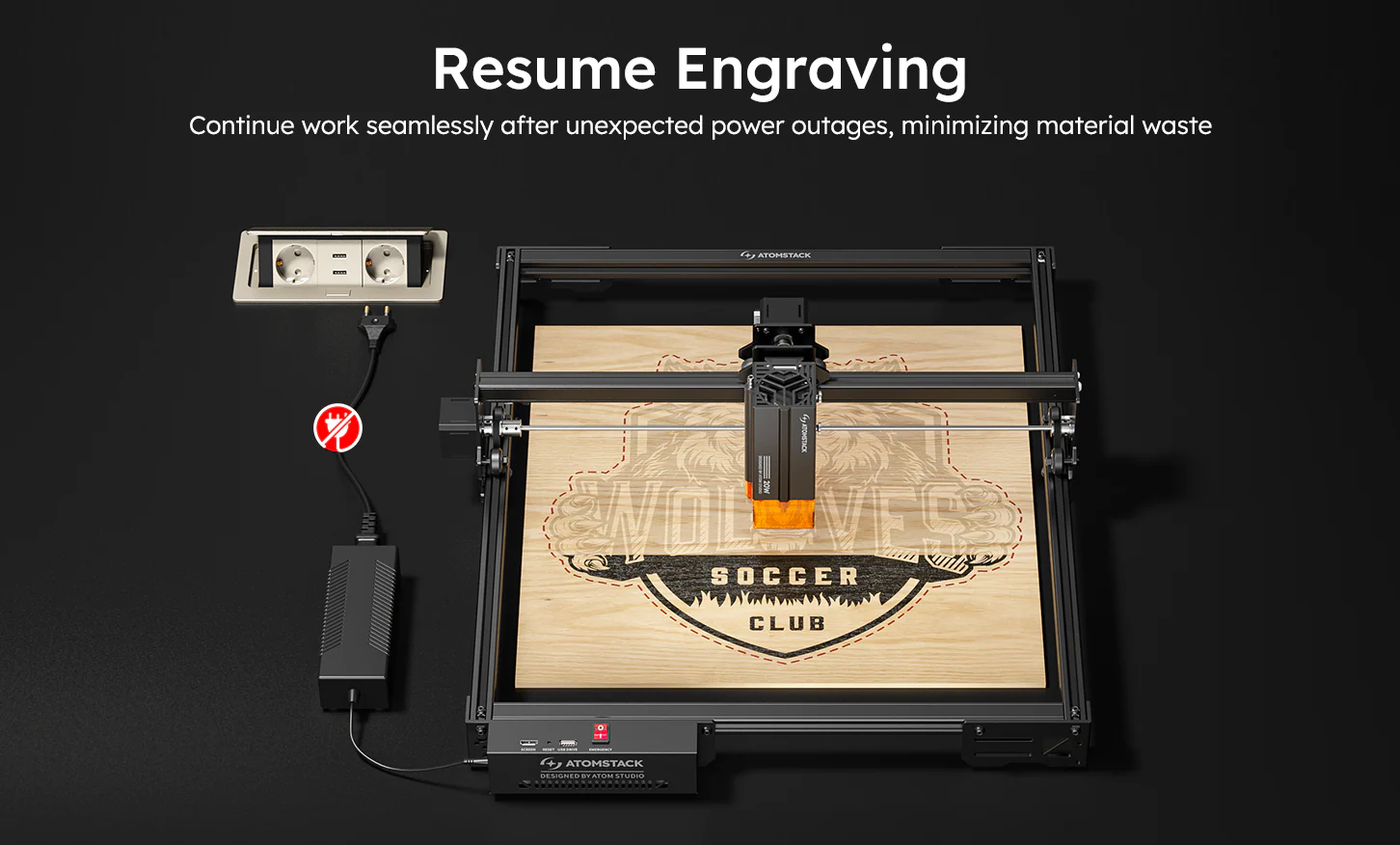

| Resume Engraving: | Yes |
| Quality Certification: | IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA |
